Azure 上使用 Kubeflow 和 MinIO 的机器学习管道

export RESOURCE_GROUP_NAME=MinIOKubeFlow
export LOCATION=westus

az group create -n $RESOURCE_GROUP_NAME -l $LOCATION

export NAME=KubeFlowMinIO

export AGENT_SIZE=Standard_D4s_v3

export AGENT_COUNT=4

az aks create -g $RESOURCE_GROUP_NAME -n $NAME -s $AGENT_SIZE -c $AGENT_COUNT -l $LOCATION --generate-ssh-keys

az aks get-credentials -n $NAME -g $RESOURCE_GROUP_NAME

kubectl minio init

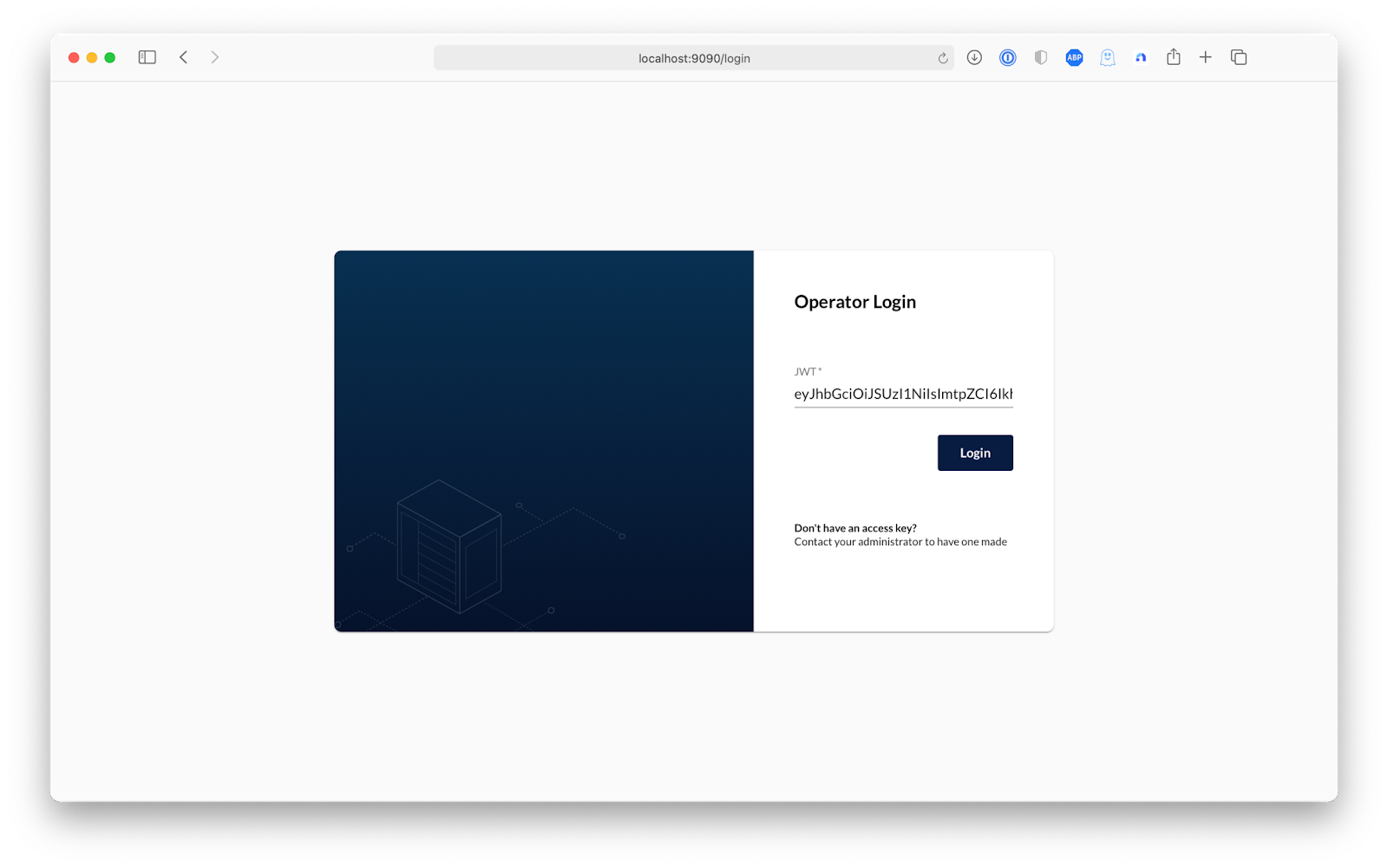

kubectl minio proxy -n minio-operator

Starting port forward of the Console UI.

To connect open a browser and go to http://localhost:9090

Current JWT to login: eyJhbGciOiJSUzI1NiIsImtpZCI6IkhWclVWMmc2YjNuZlRKcGY1YUxJTTh1Mjd2d3ZKZmh5dzBKaE10cm5QYUUifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJtaW5pby1vcGVyYXRvciIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJjb25zb2xlLXNhLXRva2VuLTh2cDRxIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImNvbnNvbGUtc2EiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI4MDJkMmFlZi02ZTQxLTQyMzctYjIyYS04OGVkNjhhNTFkMWMiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6bWluaW8tb3BlcmF0b3I6Y29uc29sZS1zYSJ9.CxaS7Xy6l63Z90FLDL0XV0FB4iYYD93-EZ9lT6dUxHTkaYIwGzuVAOVYKclIAslpJqvANzurnuCQv2DSYuptBokqNyJqBZ_Mdfxk_BD8k9LNvvhH2B75FXJOlLUvO43HZp-vWqiBLHvhWD86KI5YdCqgXq0KB2Yuw03pIeAkGhdo-QN7EnTVt-mu6OniB6q_oSC61wUoToHCZKbq7OLeg2zzwqo9JGCBvghBbiVFzeMTYAQHdad69PsWjBRBlUKbG7v5eNWiVPiV44r0-fUZxdCr-1JEP9e4Ag-8J2GzIU1-yBIc_Yn1ok59HxXwiT-_fmp2tpe2WsArY7Hwzza2qLoVSkITzPX6eMVbGfRdzbcxd396LcQfg8GJn4Rbs1Z4YCRqMK_DpoQqYOFf-pjZ6Oa91GlZpMVSH_6_H4xxBuuobyn3WK7XyuBxJuFcl7KoIKoa4qwi87eUE139RXPOZKsCrMX-YmKxTAixKlGux2U4jRaN2lav6_y-ayUvHt0syEJqu0uhqdPNVxGIWW0sabJJ0sSfQdacmrBY1VazIYsN2NAL1N2QCwmQvvjRlqpEAWPF_uhuVwGtgcDX8-CxRKtfoY-8gn7ujwCKl1GMpyr-nE8p88eMIxEkaXqBia0erRLwUGTHrS2ymGN0Ii85_2wRZmDuCGA9QiQ01r89ZXU

Forwarding from 0.0.0.0:9090 -> 9090

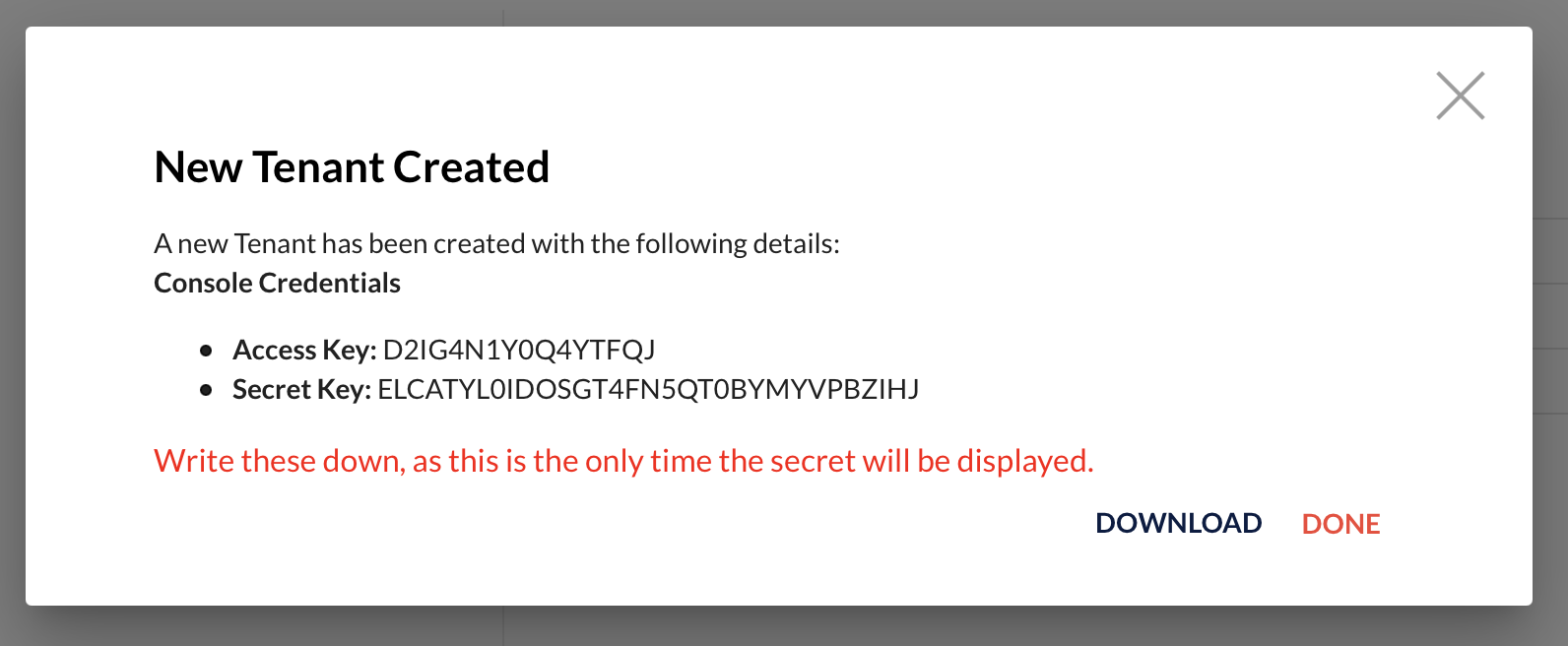

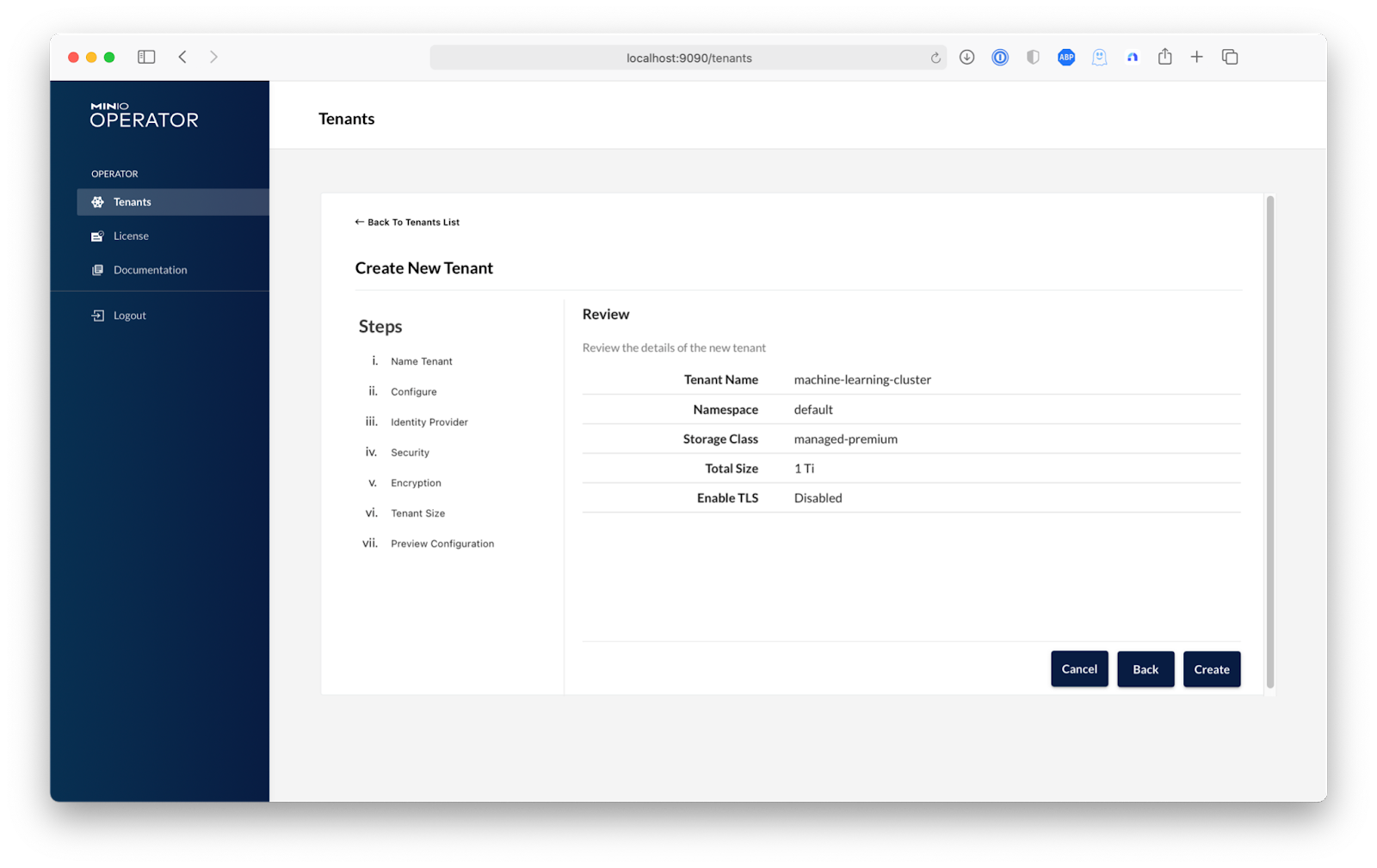

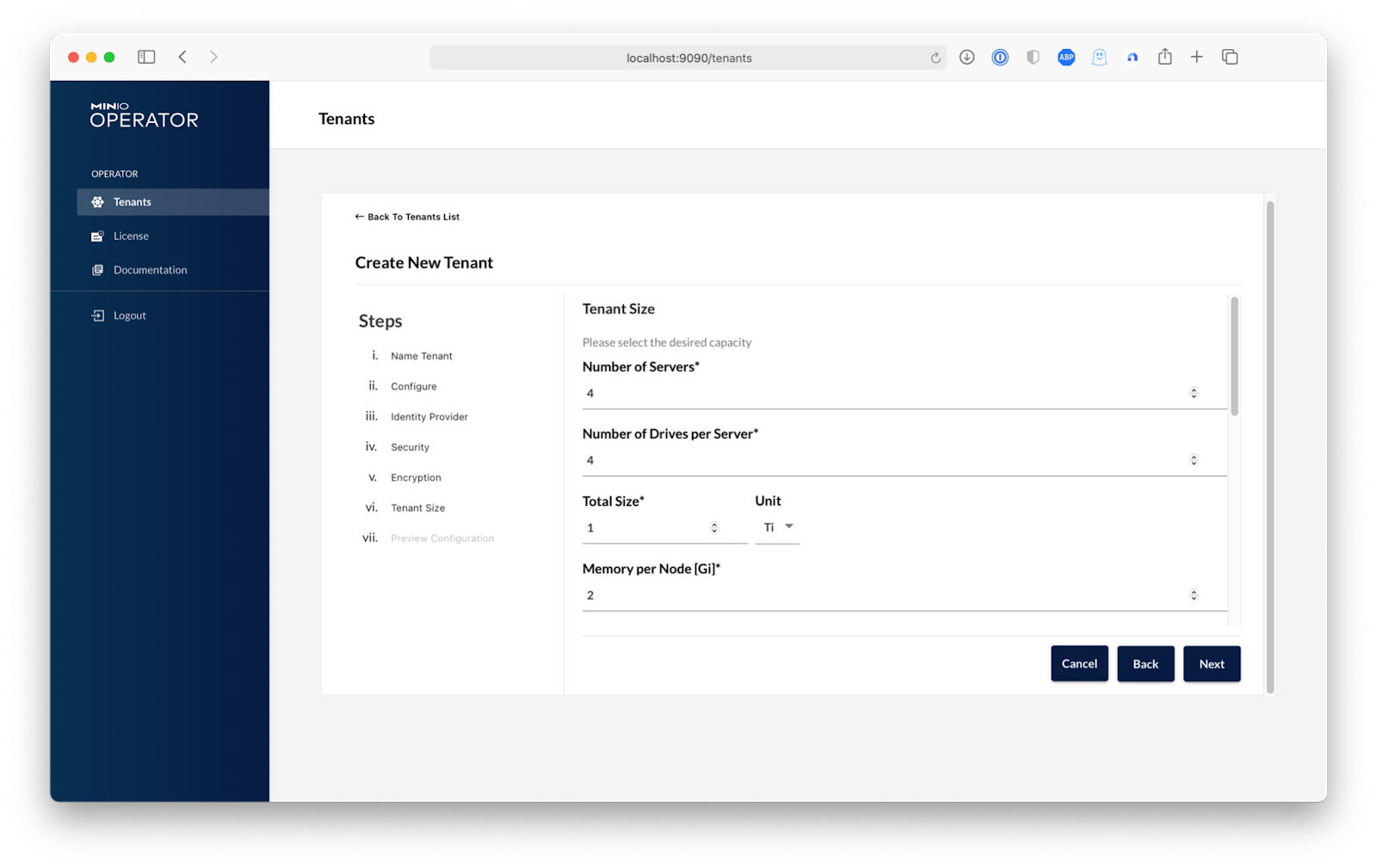

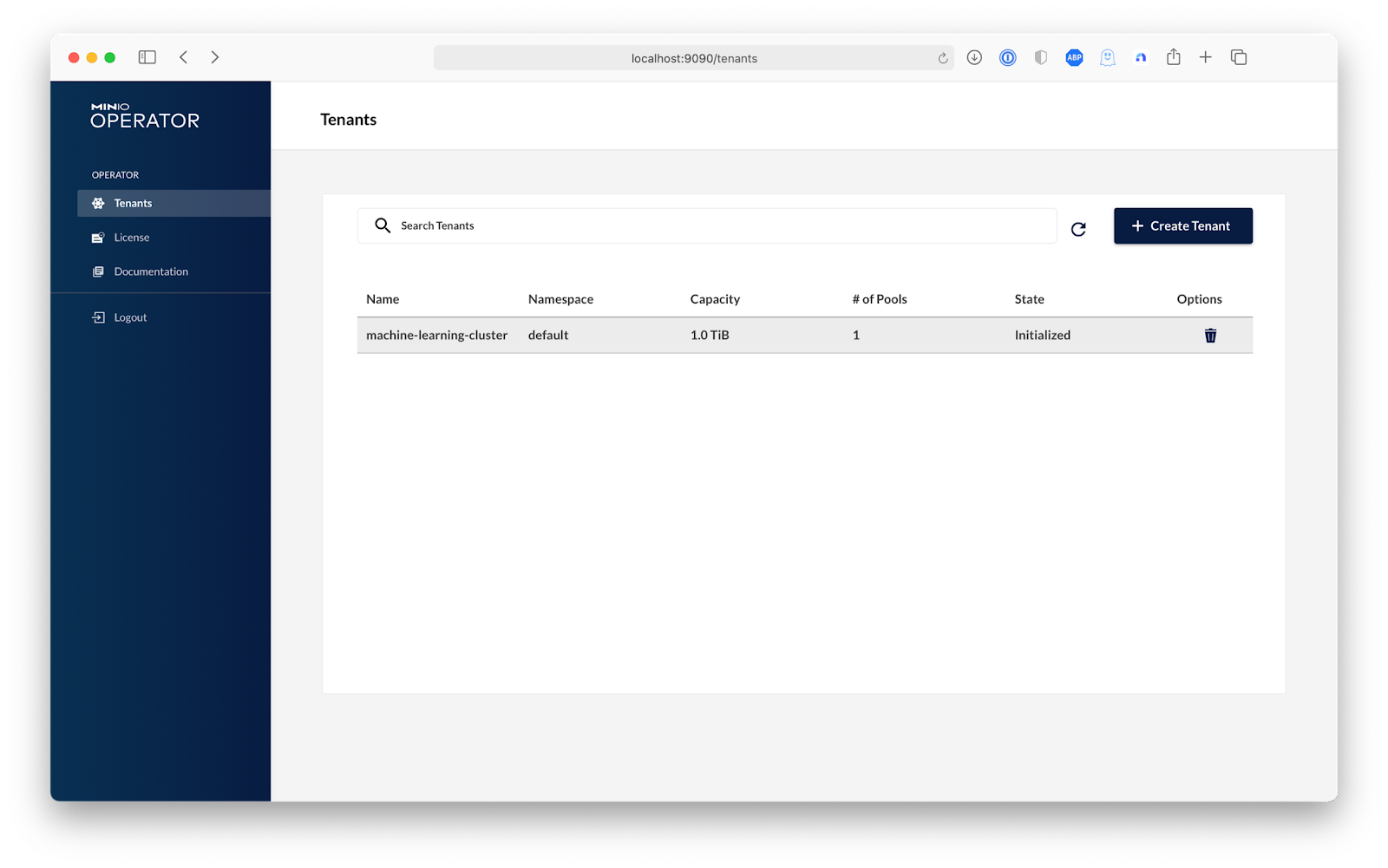

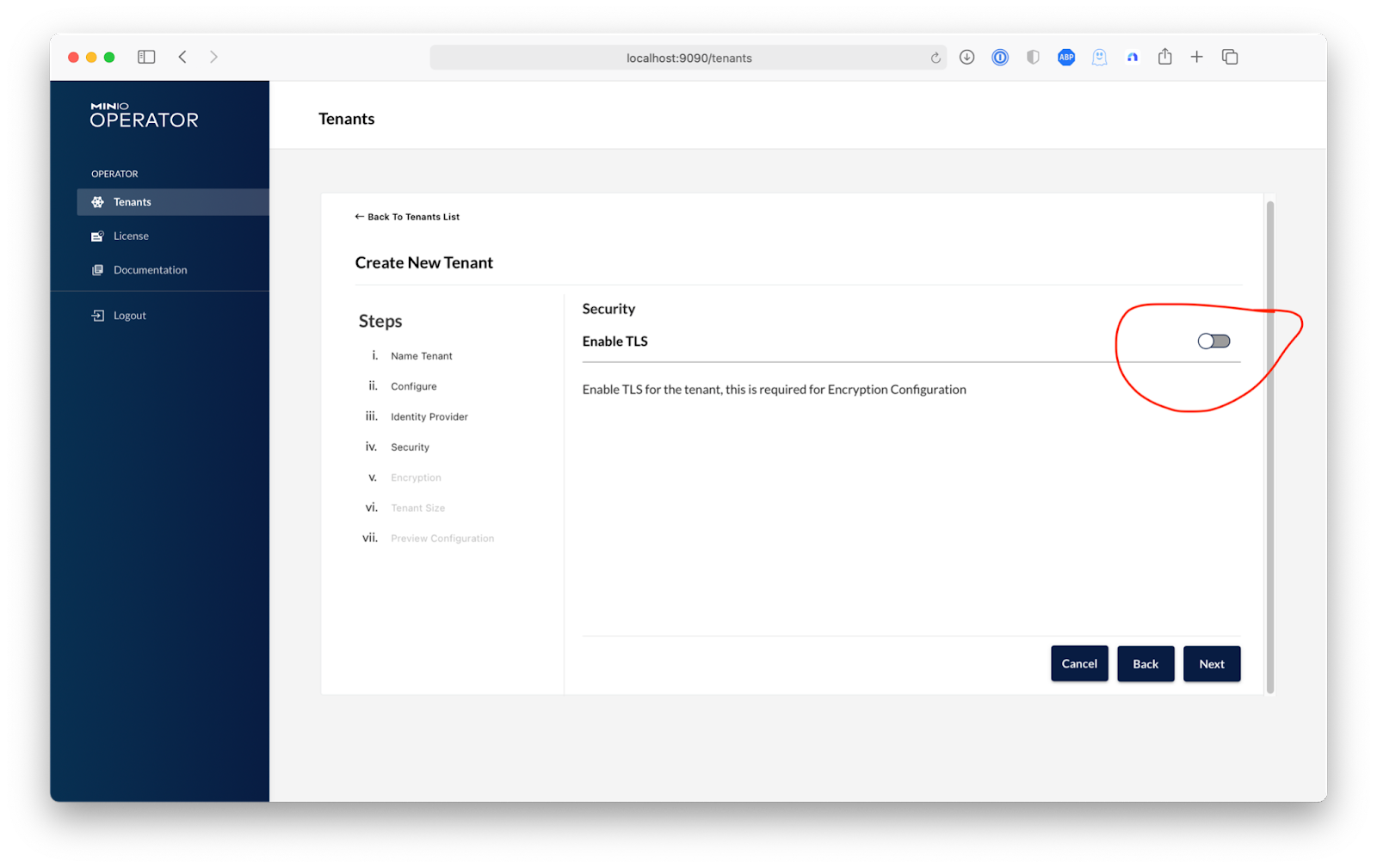

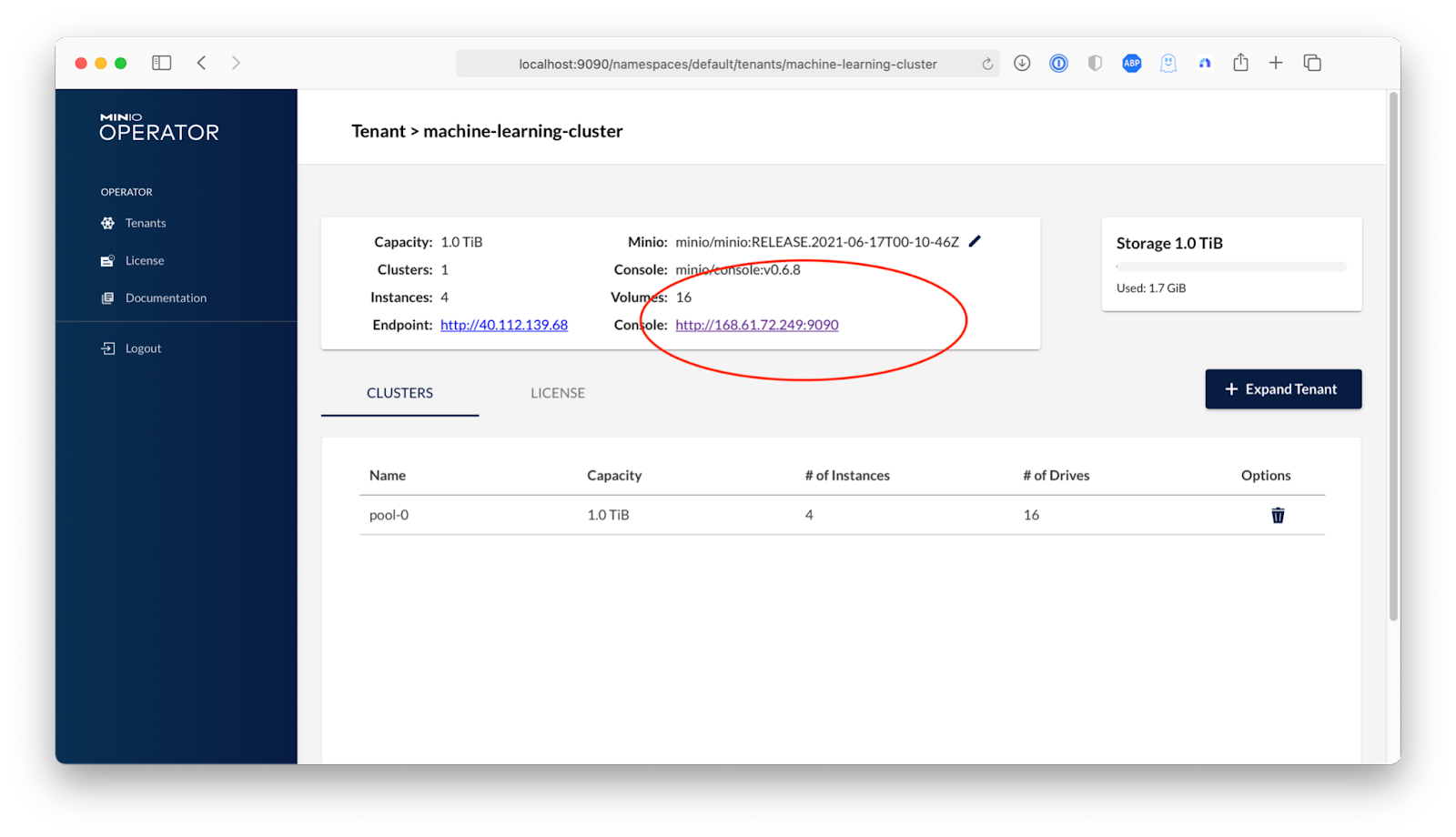

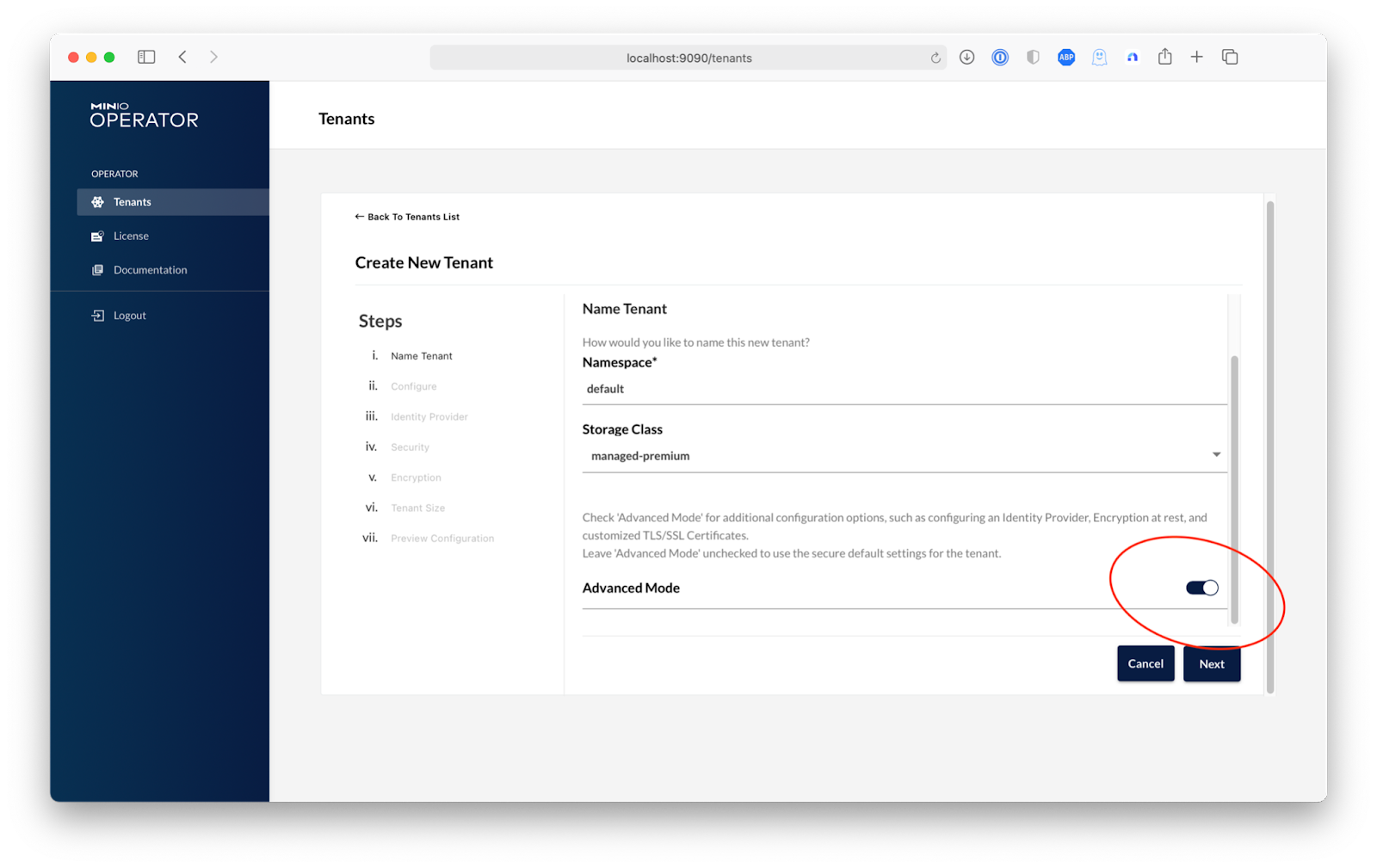

# Set KF_NAME to the name of your Kubeflow deployment. You also use this
# value as directory name when creating your configuration directory.
# For example, your deployment name can be 'my-kubeflow' or 'kf-test'.
export KF_NAME=my-kubeflow

# Set the path to the base directory where you want to store one or more
# Kubeflow deployments. For example, /opt/.
# Then set the Kubeflow application directory for this deployment.
export BASE_DIR=kubeflowsetup
export KF_DIR=${BASE_DIR}/${KF_NAME}

# Set the configuration file to use when deploying Kubeflow.
# The following configuration installs Istio by default. Comment out
# the Istio components in the config file to skip Istio installation.
# See https://github.com/kubeflow/kubeflow/pull/3663
export CONFIG_URI="https://raw.githubusercontent.com/kubeflow/manifests/v1.2-branch/kfdef/kfctl_k8s_istio.v1.2.0.yaml"

mkdir -p ${KF_DIR}
cd ${KF_DIR}
kfctl apply -V -f ${CONFIG_URI}

kubectl get all -n kubeflow

kubectl port-forward svc/istio-ingressgateway -n istio-system 8080:80

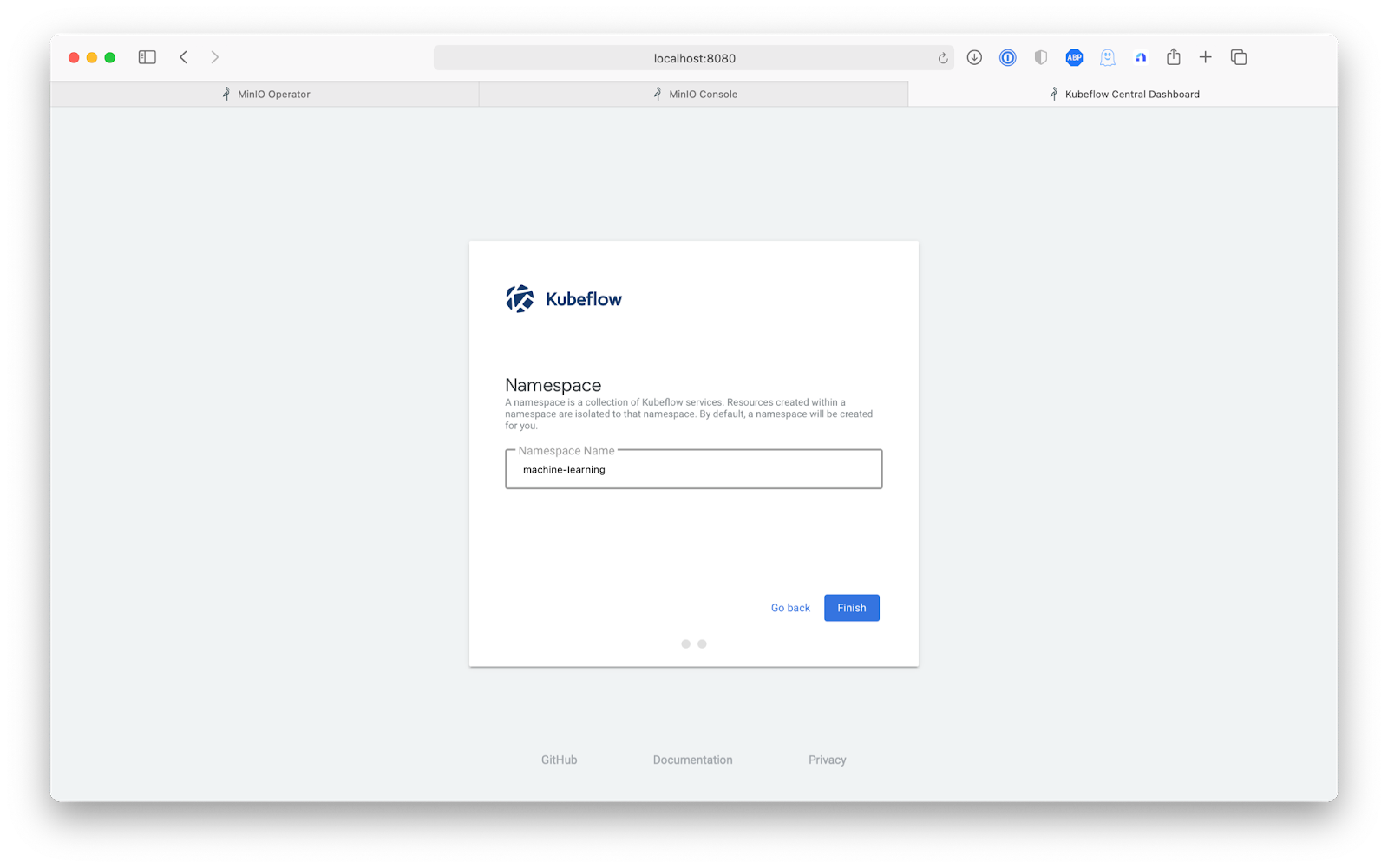

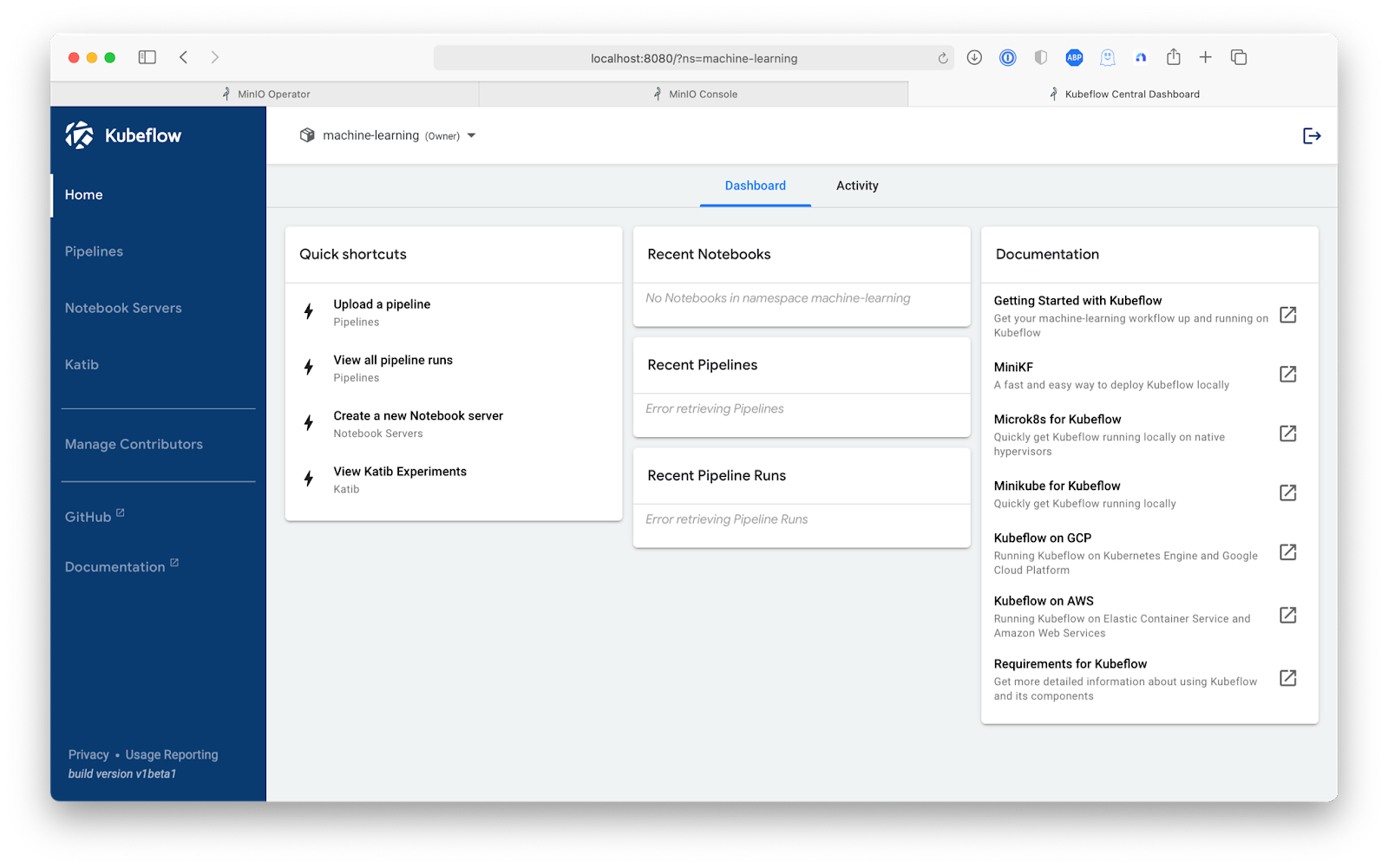

USER=; PASSWORD=; echo -n $USER:$PASSWORD | base64 |  xargs echo -n |xargs -0 printf '{
    "auths": {
        "https://index.docker.io/v1/": {
            "auth": "%s"
        }
    }
}\n' > /tmp/config.json && kubectl create --namespace ${NAMESPACE} configmap docker-config --from-file=/tmp/config.json && rm /tmp/config.json

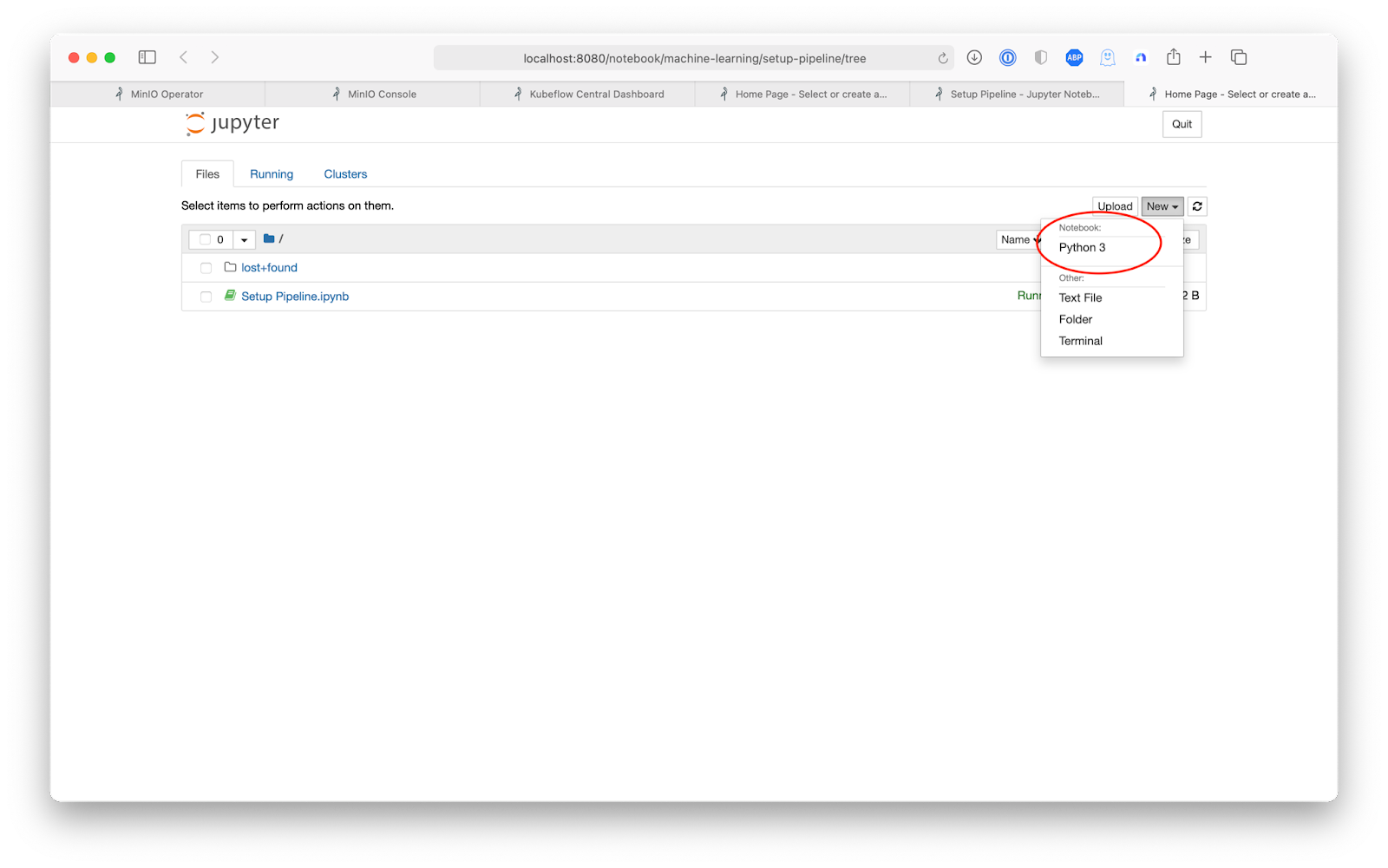

import urllib.request
import shutil

file_list = ["https://raw.githubusercontent.com/kubeflow/examples/master/mnist/k8s_util.py","https://raw.githubusercontent.com/kubeflow/examples/master/mnist/Dockerfile.model","https://raw.githubusercontent.com/kubeflow/examples/master/mnist/model.py","https://raw.githubusercontent.com/kubeflow/examples/master/mnist/notebook_setup.py","https://raw.githubusercontent.com/kubeflow/examples/master/mnist/requirements.txt"]

for url in file_list:
    file_name = url.split("/").pop()
    with urllib.request.urlopen(url) as response, open(file_name, 'wb') as out_file:
        shutil.copyfileobj(response, out_file)

from kubernetes import client as k8s_client
from kubernetes.client import rest as k8s_rest
from kubeflow import fairing
from kubeflow.fairing import utils as fairing_utils
from kubeflow.fairing.builders import append
from kubeflow.fairing.deployers import job
from kubeflow.fairing.preprocessors import base as base_preprocessor

DOCKER_REGISTRY = "miniodev"
namespace = fairing_utils.get_current_k8s_namespace()

from kubernetes import client as k8s_client
from kubernetes.client.rest import ApiException

api_client = k8s_client.CoreV1Api()
minio_service_endpoint = "minio.default.svc.cluster.local"

s3_endpoint = minio_service_endpoint
minio_endpoint = "http://"+s3_endpoint
minio_username = "AXNENHDUBB2LU24Y"
minio_key = "GPONOCU0IDQZBMP55TTELR00D4HGFPJK"
minio_region = "us-east-1"

logging.info(f"Running in namespace {namespace}")
logging.info(f"Using docker registry {DOCKER_REGISTRY}")
logging.info(f"Using minio instance with endpoint '{s3_endpoint}'")

import logging
import os
import uuid
from importlib import reload
import notebook_setup
reload(notebook_setup)
notebook_setup.notebook_setup(platform='none')

import k8s_util
# Force a reload of kubeflow; since kubeflow is a multi namespace module
# it looks like doing this in notebook_setup may not be sufficient
import kubeflow
reload(kubeflow)
from kubernetes import client as k8s_client
from kubernetes import config as k8s_config
from kubeflow.tfjob.api import tf_job_client as tf_job_client_module
from IPython.core.display import display, HTML
import yaml

# TODO(https://github.com/kubeflow/fairing/issues/426): We should get rid of this once the default
# Kaniko image is updated to a newer image than 0.7.0.
from kubeflow.fairing import constants
constants.constants.KANIKO_IMAGE = "gcr.io/kaniko-project/executor:v0.14.0"

from kubeflow.fairing.builders import cluster

# output_map is a map of extra files to add to the notebook.
# It is a map from source location to the location inside the context.
output_map =  {
    "Dockerfile.model": "Dockerfile",
    "model.py": "model.py"
}

preprocessor = base_preprocessor.BasePreProcessor(
    command=["python"], # The base class will set this.
    input_files=[],
    path_prefix="/app", # irrelevant since we aren't preprocessing any files
    output_map=output_map)

preprocessor.preprocess()

# Use a Tensorflow image as the base image
# We use a custom Dockerfile
from kubeflow.fairing.cloud.k8s import MinioUploader
from kubeflow.fairing.builders.cluster.minio_context import MinioContextSource

minio_uploader = MinioUploader(endpoint_url=minio_endpoint, minio_secret=minio_username, minio_secret_key=minio_key, region_name=minio_region)
minio_context_source = MinioContextSource(endpoint_url=minio_endpoint, minio_secret=minio_username, minio_secret_key=minio_key, region_name=minio_region)

cluster_builder = cluster.cluster.ClusterBuilder(registry=DOCKER_REGISTRY,
                                                base_image="", # base_image is set in the Dockerfile
                                                preprocessor=preprocessor,
                                                image_name="mnist",
                                                dockerfile_path="Dockerfile",
                                                context_source=minio_context_source)
cluster_builder.build()
logging.info(f"Built image {cluster_builder.image_tag}")

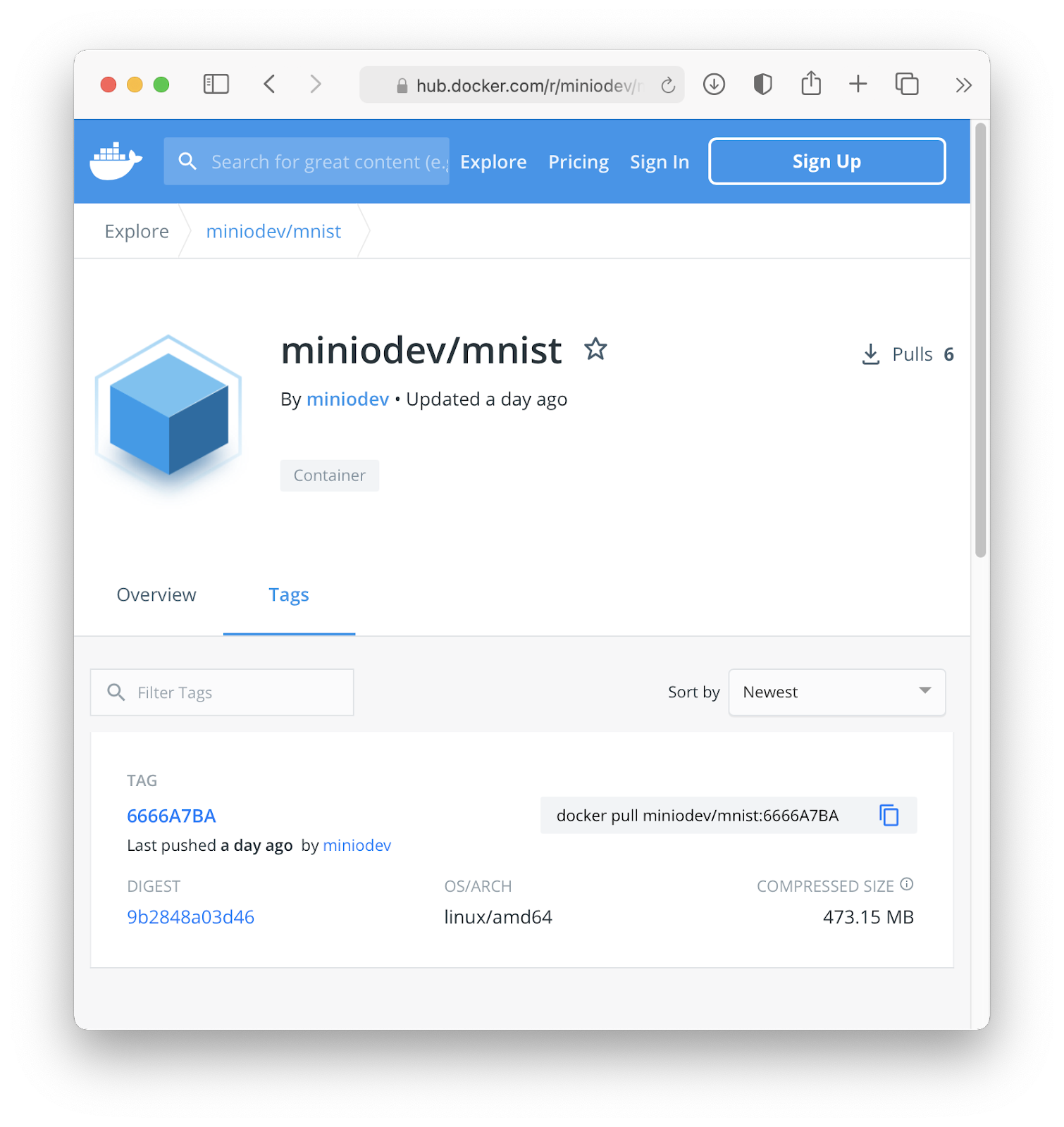

mnist_bucket = f"{DOCKER_REGISTRY}-mnist"
minio_uploader.create_bucket(mnist_bucket)
logging.info(f"Bucket {mnist_bucket} created or already exists")

train_name = f"mnist-train-{uuid.uuid4().hex[:4]}"
num_ps = 1
num_workers = 2
model_dir = f"s3://{mnist_bucket}/mnist"
export_path = f"s3://{mnist_bucket}/mnist/export"
train_steps = 200
batch_size = 100
learning_rate = .01
image = cluster_builder.image_tag

train_spec = f"""apiVersion: kubeflow.org/v1
kind: TFJob
metadata:
  name: {train_name}
spec:
  tfReplicaSpecs:
    Ps:
      replicas: {num_ps}
      template:
        metadata:
          annotations:
            sidecar.istio.io/inject: "false"
        spec:
          serviceAccount: default-editor
          containers:
          - name: tensorflow
            command:
            - python
            - /opt/model.py
            - --tf-model-dir={model_dir}
            - --tf-export-dir={export_path}
            - --tf-train-steps={train_steps}
            - --tf-batch-size={batch_size}
            - --tf-learning-rate={learning_rate}
            env:
            - name: S3_ENDPOINT
              value: {s3_endpoint}
            - name: AWS_ENDPOINT_URL
              value: {minio_endpoint}
            - name: AWS_REGION
              value: {minio_region}
            - name: BUCKET_NAME
              value: {mnist_bucket}
            - name: S3_USE_HTTPS
              value: "0"
            - name: S3_VERIFY_SSL
              value: "0"
            - name: AWS_ACCESS_KEY_ID
              value: {minio_username}
            - name: AWS_SECRET_ACCESS_KEY
              value: {minio_key}
            image: {image}
            workingDir: /opt
          restartPolicy: OnFailure
    Chief:
      replicas: 1
      template:
        metadata:
          annotations:
            sidecar.istio.io/inject: "false"
        spec:
          serviceAccount: default-editor
          containers:
          - name: tensorflow
            command:
            - python
            - /opt/model.py
            - --tf-model-dir={model_dir}
            - --tf-export-dir={export_path}
            - --tf-train-steps={train_steps}
            - --tf-batch-size={batch_size}
            - --tf-learning-rate={learning_rate}
            env:
            - name: S3_ENDPOINT
              value: {s3_endpoint}
            - name: AWS_ENDPOINT_URL
              value: {minio_endpoint}
            - name: AWS_REGION
              value: {minio_region}
            - name: BUCKET_NAME
              value: {mnist_bucket}
            - name: S3_USE_HTTPS
              value: "0"
            - name: S3_VERIFY_SSL
              value: "0"
            - name: AWS_ACCESS_KEY_ID
              value: {minio_username}
            - name: AWS_SECRET_ACCESS_KEY
              value: {minio_key}
            image: {image}
            workingDir: /opt
          restartPolicy: OnFailure
    Worker:
      replicas: 1
      template:
        metadata:
          annotations:
            sidecar.istio.io/inject: "false"
        spec:
          serviceAccount: default-editor
          containers:
          - name: tensorflow
            command:
            - python
            - /opt/model.py
            - --tf-model-dir={model_dir}
            - --tf-export-dir={export_path}
            - --tf-train-steps={train_steps}
            - --tf-batch-size={batch_size}
            - --tf-learning-rate={learning_rate}
            env:
            - name: S3_ENDPOINT
              value: {s3_endpoint}
            - name: AWS_ENDPOINT_URL
              value: {minio_endpoint}
            - name: AWS_REGION
              value: {minio_region}
            - name: BUCKET_NAME
              value: {mnist_bucket}
            - name: S3_USE_HTTPS
              value: "0"
            - name: S3_VERIFY_SSL
              value: "0"
            - name: AWS_ACCESS_KEY_ID
              value: {minio_username}
            - name: AWS_SECRET_ACCESS_KEY
              value: {minio_key}
            image: {image}
            workingDir: /opt
          restartPolicy: OnFailure
"""

tf_job_client = tf_job_client_module.TFJobClient()

tf_job_body = yaml.safe_load(train_spec)
tf_job = tf_job_client.create(tf_job_body, namespace=namespace)

logging.info(f"Created job {namespace}.{train_name}")

from kubeflow.tfjob import TFJobClient
tfjob_client = TFJobClient()
tfjob_client.wait_for_job(train_name, namespace=namespace, watch=True)

tfjob_client.get_logs(train_name, namespace=namespace)

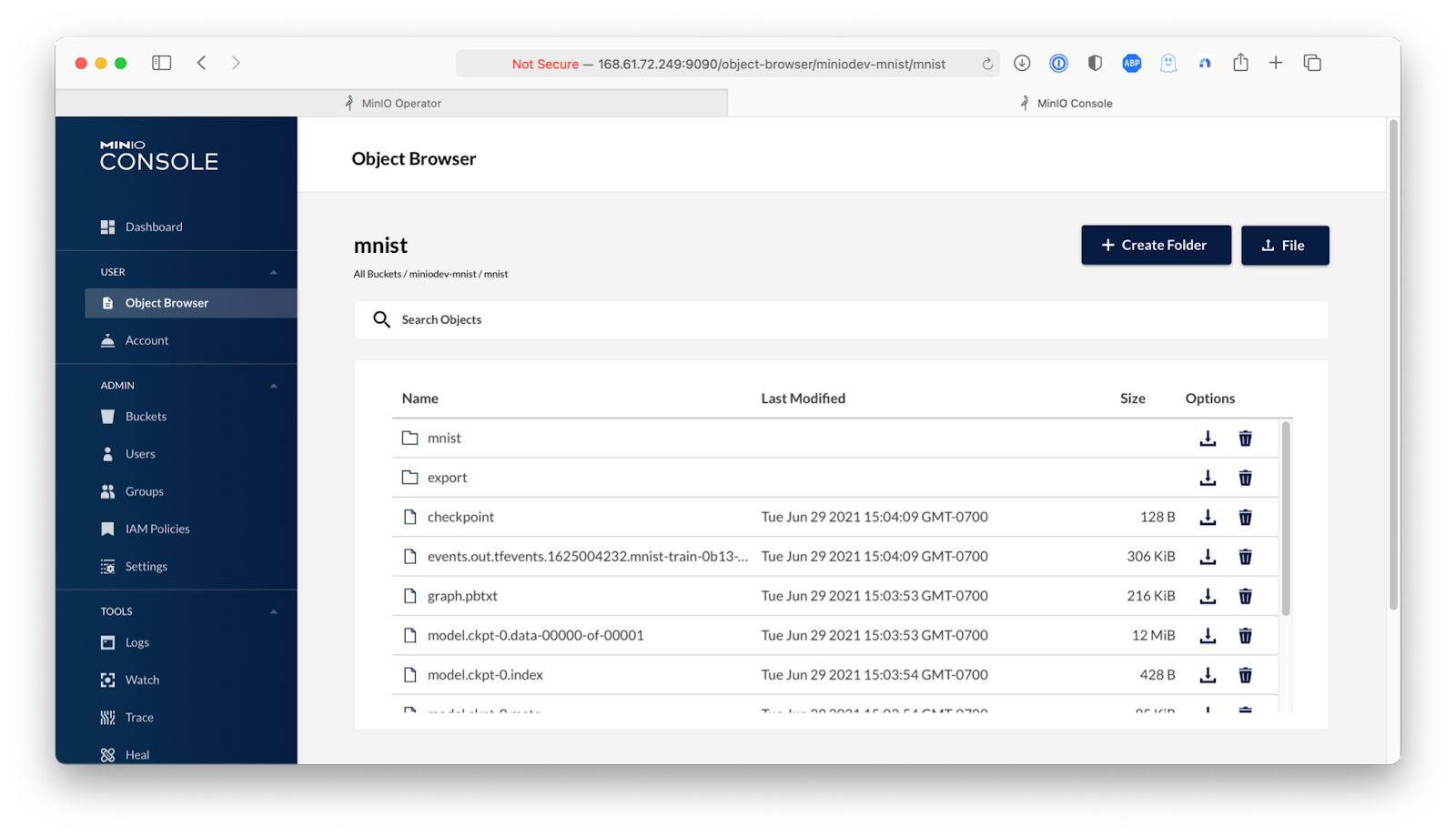

from botocore.exceptions import ClientError

try:
    model_response = minio_uploader.client.list_objects(Bucket=mnist_bucket)
    # Minimal check to see if at least the bucket is created
    if model_response["ResponseMetadata"]["HTTPStatusCode"] == 200:
        logging.info(f"{model_dir} found in {mnist_bucket} bucket")
except ClientError as err:
    logging.error(err)

tb_name = "mnist-tensorboard"
tb_deploy = f"""apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: mnist-tensorboard
  name: {tb_name}
  namespace: {namespace}
spec:
  selector:
    matchLabels:
      app: mnist-tensorboard
  template:
    metadata:
      labels:
        app: mnist-tensorboard
        version: v1
    spec:
      serviceAccount: default-editor
      containers:
      - command:
        - /usr/local/bin/tensorboard
        - --logdir={model_dir}
        - --port=80
        image: tensorflow/tensorflow:1.15.2-py3
        env:
        - name: S3_ENDPOINT
          value: {s3_endpoint}
        - name: AWS_ENDPOINT_URL
          value: {minio_endpoint}
        - name: AWS_REGION
          value: {minio_region}
        - name: BUCKET_NAME
          value: {mnist_bucket}
        - name: S3_USE_HTTPS
          value: "0"
        - name: S3_VERIFY_SSL
          value: "0"
        - name: AWS_ACCESS_KEY_ID
          value: {minio_username}
        - name: AWS_SECRET_ACCESS_KEY
          value: {minio_key}
        name: tensorboard
        ports:
        - containerPort: 80
"""
tb_service = f"""apiVersion: v1
kind: Service
metadata:
  labels:
    app: mnist-tensorboard
  name: {tb_name}
  namespace: {namespace}
spec:
  ports:
  - name: http-tb
    port: 80
    targetPort: 80
  selector:
    app: mnist-tensorboard
  type: ClusterIP
"""

tb_virtual_service = f"""apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: {tb_name}
  namespace: {namespace}
spec:
  gateways:
  - kubeflow/kubeflow-gateway
  hosts:
  - '*'
  http:
  - match:
    - uri:
        prefix: /mnist/{namespace}/tensorboard/
    rewrite:
      uri: /
    route:
    - destination:
        host: {tb_name}.{namespace}.svc.cluster.local
        port:
          number: 80
    timeout: 300s
"""

tb_specs = [tb_deploy, tb_service, tb_virtual_service]

k8s_util.apply_k8s_specs(tb_specs, k8s_util.K8S_CREATE_OR_REPLACE)
